> TUBE BENDING MACHINE

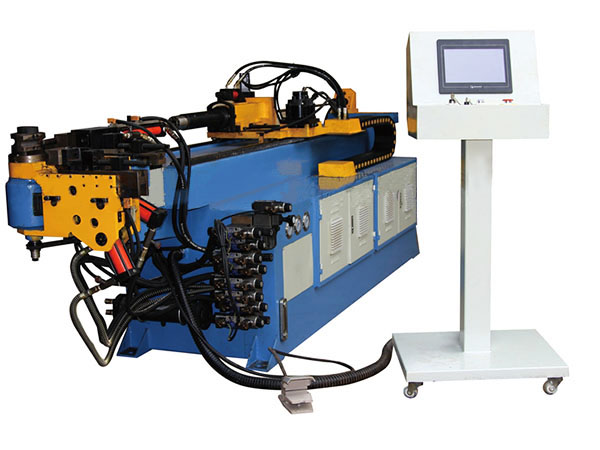

50CNC-2A-13 FULLY AUTOMATIC CNC BENDING MACHINE
- Product description: 50CNC-2A-13 FULLY AUTOMATIC CNC BENDING MACHINE
PRODUCT INTRODUCTION
Full automatic CNC Pipe/Tube Bending Machine is full automatic type machine for bending three dimensional complicated work-pieces, which can input YBC or XYZ into controlling system, and machine make the tube bend accordingly.
* Bending-Auto driven by servomotor, Rotation-Auto by servomotor, Feeding-Auto by servomotor
* Pneumatic movement of machine------clamp, pressure clamp, clutch, mandrel (High speed)
* Automatic lubrication system of machine head and mandrel
* X.Y.Z. transferred to Y.B.C. which is convenient for user
* Different tooling design customized for user
* Anticipated Mandrel Extraction good for tube of very small thickness
* Re-clamp function suitable for tube length without limitation
* Optional function ------punching hole, cutting, multiple radius, roll bending, etc
* Standard tooling including clamp die, wiper die, mandrel, pressure die, bend die
* Separate oil tank with oil filter--easy for cleaning
* Option control system----Industrial computer with function of 3D simulation, 3D view, inch input, drawing input, remote control
