> TAPPING MACHINE
TAPPING MACHINE M16
- Product description: M3~M16

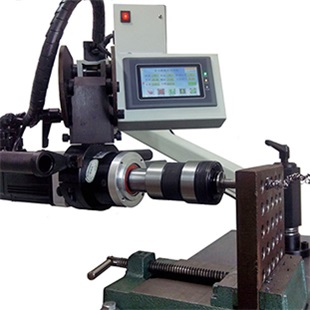

PRODUCT INTRODUCTION

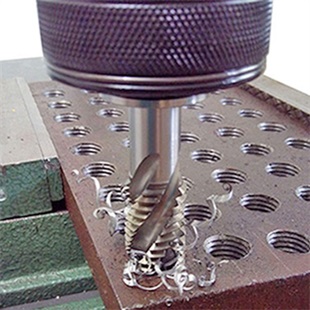

(1) Tapping machine control system using touch screen and servo system collocation, has characteristics of high precision, fast speed and high quality.
(2) The operating strength, angle of rotation/locking according to ergonomic design, operating for a long time without fatigue.
(3) The body is made of high quality steel and aluminum alloy, rotating parts using precision bearing links, high rigidity of the machine,maintenance free.
(4) Store six groups of parameters, the user can automatically change,the stalls are set to the appropriate torque, the first protection to prevent broken tap.
(5) Language system default settings for Chinese, can be switched to English, korean.

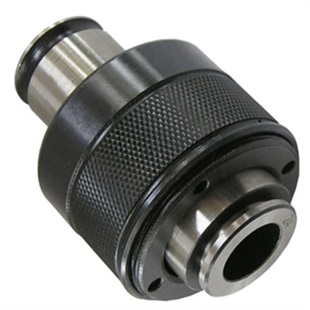

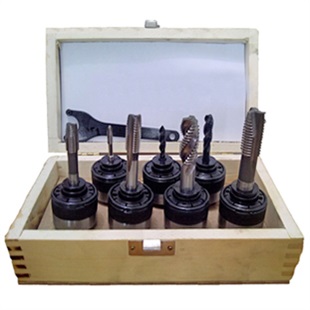

(6) Tap chuck using 65Mn steel, has the protective function of torque,the double protection to prevent broken tap, and has super hard super durable characteristics.
(7) Use 110V/220V power, workplace without specific restrictions.
Safety requirements
1.Working Table
The steel thickness of working table is above 10mm, the installation hole is as the following:
The Highest working area, as shown below,
Lowest working area, as shown below:
Minimum working area, as shown below:
3.Power supply demand:
Power supply voltage: 110V/220V ±10% 50/60Hz
Power source : SGM12/16 series: 3A 600W
SGM24/30 series: 6A 1200W
※ The operating personnel to avoid electric shock, the device must be connected to reliable grounding wire.
Structure:
Installation Method:
The whole machine is fixed on the table. Remove long strip plate.
|
After the fixing plate is removed, the auxiliary handle is installed. ※Note: the fixed plate removal, bracket will automatically bounce,please caution.
Verticality
adjustment |
In order to ensure the accuracy of tapping, verticality adjustment before tapping.
First,take quick chuck,then down the motor,contact surface of workpiece.The sleeves is in close contact with the workpiece surface.
※ After the fixing plate is removed, the auxiliary handle is installed.
Verticality
adjustment must be accurate, otherwise it will affect:
1. tapping accuracy
2. tapping torque
3.broken tap
Touch Panel
NOTE 1：【Auto】、【Manual】MODE
System start-up defaults to manual mode, the touch screen by clicking on the [Auto],[Manual] button for automatic and manual switching.The screen shows the currently selected operation mode.
In manual mode, the
"tapping" button and "back" button is "long
press" effective, once the button is released,immediately stopped.
In the automatic mode, the "tapping" button to start button, "back" button stop button,"tapping" button to jog once a self-tapping cycle.
In unusual
circumstances, can be automatically switched by pressing "back"button to achieve the
manual mode, the automatic mode can also be achieved manually tap back
function, press the "tapping" button again reversed automatic tapping
mode.
NOTE 2：【Lock】、【Operable】
Lock mode： the “tap”“back”button does not work ,when the user leaves.
Switch to Operable
mode when working.
NOTE 3：【Shift】
Common processing parameters can be stored, a total of six stalls. Press the ”shift” button can select one of the six stalls.
NOTE 4：【Normal】、【Peck】
Click the button to switch the tapping mode, the screen displays the currently selected tapping mode.
【Normal】:
The default on the
system as normal tapping, tapping cycle is completed
automatically without repeated forward, back tap-tapping action in automatic mode.
【Peck】:
In automatic mode to
complete a self-tapping tapping cycle,according to the
[Peck] in peck tapping into retreat wire repeatedly into the parameter ettings, tap the
action back to finalize an automatic tapping cycle.
NOTE 5：【Forward】、【Reverse】
Click on the button to change the direction of tapping, tapping the screen display of the current state of the selected direction.
【Forward】：
tapping forward thread
【Reverse】：
tapping Reverse Thread
NOTE 6：【Function】
Click [Function]
menu, four menus appears ,[Parameter], [Peck Setting], [Reset Count] and
[Diagnosis].
（1） 【Parameter】
Click [Function], then click [Parameter], the next screen appears.
Click [1st] - [6th]
to select the shift you want to set, such as clicking [1st] into [1st ] parameter setting
screen.
※[Interval]: In automatic tapping mode, the value of [Interval] setting is both tapping cycle interval, such as [Interval] setting 3S, 3S completed a tapping cycle automatically starts the next tapping cycle.
If you want to set certain parameters, such as [Feed], you must first click to select [Feed] the right of the input box, pop-up numeric keypad and then enter the desired speed value, click the "ENTER".
※Note: If you enter a value in excess of the maximum speed of the machine value, your input will not be successful.
Below you commonly pitch, torque table
（2） 【PECK SETTING】：
Click the [PECK SETTING] button to set forward and reverse.parameter.
（3） 【Reset Count】：
When you complete a
tapping each, the system will automatically give you the count.
Click the [Reset
Count] total count will be cleared.
（4）、【Diagnosis】：
Click [Function], then click [Dignosis] to enter the screen shown below, the screen displays the current status of the server work.
When an alarm occurs, click [ALM Clear], 2 seconds after the [Servo AMP] [Normal] display, alarm elimination.
Other screen
introduction:
1. alarm screen
Servo alarm occurs in the main page, it will automatically pop up a servo alarm screen, as shown below:
Click [Reset] button, two seconds after the alarm eliminated.
※ Alarm can be cleared through three ways:
① Click on the pop-up alarm screen [Reset] button, 2 seconds after the servo alarm eliminated.
② [Function] in the [Diagnosis] Click [ALM Clear], two seconds after the alarm eliminated.
③ Long press "back" metal button on the metal handle for 2 seconds, remove the servo alarm, and automatically switch to manual mode.
2. Screen saver
The touch screen will enter the screen saver mode if five minutes no operation .The user can Modification time in the syetem setting page.
Diagram
