W11S BIG TYPE UPPER ROLLER UNIVERSAL PLATE ROLLING MACHINE
- Product description: W11S BIG TYPE UPPER ROLLER UNIVERSAL PLATE ROLLING MACHINE
PRODUCT INTRODUCTION

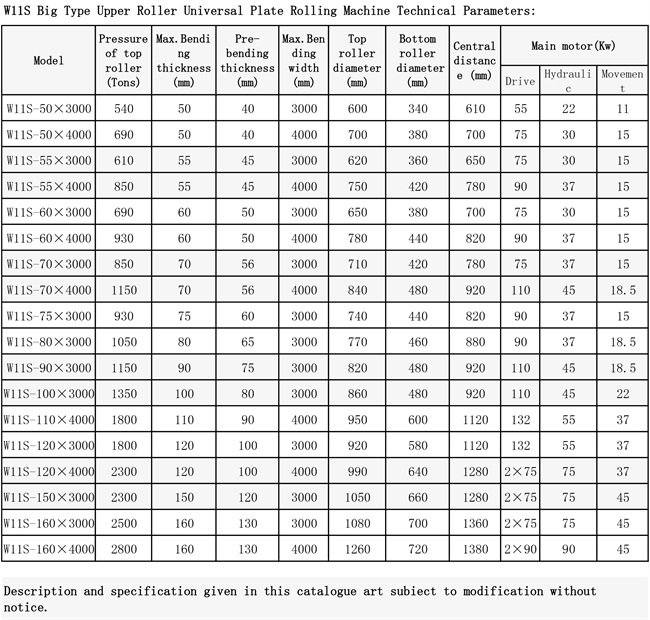

W11S Big Type Upper Roller Universal Plate Rolling Machine
Structure style:
＊This machine is a special equipment to roll the plate into curve, cylinder, conical in the principle of three point circle. The action as below:
＊Top roller move by vertical. Power: hydraulic oil tank. Role: put the pressure on the plate to make the plate bending deformation.
＊Top roller move by horizontal. Power: electromotor. Role: adjust the horizontal distance between the top and bottom roller to make the top and bottom roller position in asymmetrical to pre-bend the sheet edge and decline the length of the flat zone.
＊Bottom roller rotate. Power: electromotor. Role: supply the torque for bending plate.
＊Opening device drop down and reset. Power: hydraulic oil tank. Role: take out the finished work piece.
Performance features:
＊The upper roller is designed as drum shape. Support roller install in the lower of bottom roller to help bending a perfect cylinder from thin to thick plate;
＊Special bending craft, high precision pre-bending of the edge, digital control for bending process;
＊Rich shape bend such as O,U,R etc;
＊Cone bending device for conical bend easily;
＊Whole chassis, simple ground foundation, it’s convenient to move the workplace;
＊According to the role or requirement of customer, economic digital display type or TNC digital control type is optional;
＊CE certificate.
