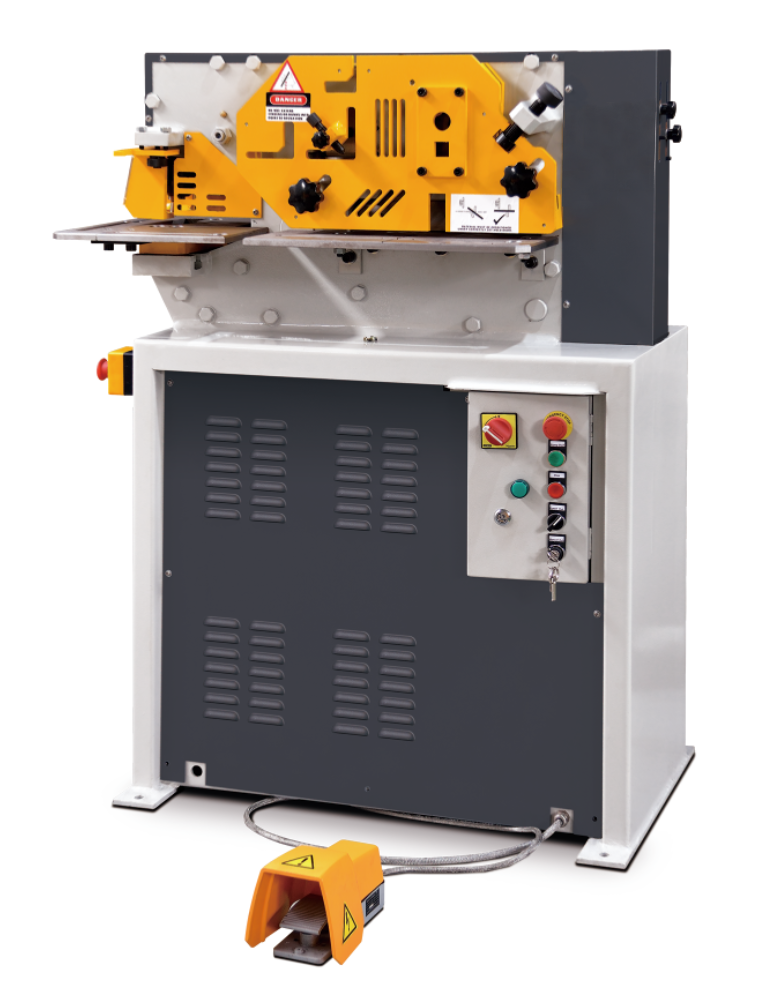

IRONWORKER ASW-45
- Product description: Punching holes, Notching, Press brake, Bending, Pipe notching, Profile steel shearing (channel shearing, I-beam shearing, round/square bar shearing, flat bar shearing, steel plate shearing, angle stee
PRODUCT INTRODUCTION
APEC Brand ASW series Ironworker features multiple functions, including: punching all kinds of holes (round hole, square hole, oblong hole), louver punching, steel plate punching, flat bar punching, angle steel punching, C-channel punching, H-beam punching, I-beam punching, profile steel shearing (channel shearing, I-beam shearing, round/square bar shearing, flat bar shearing, T-bar shearing, steel plate shearing, angle steel shearing), notching, press brake, angle steel notching , bending, pipe notching.
It comes standard with: quick-change coupling nut & sleeve, squaring arm with scale, gauging table with stops, punching base table, safety guards and more.We can design any special tools according to your metal fabricating requirements.
Features
1. High Quality Components & System

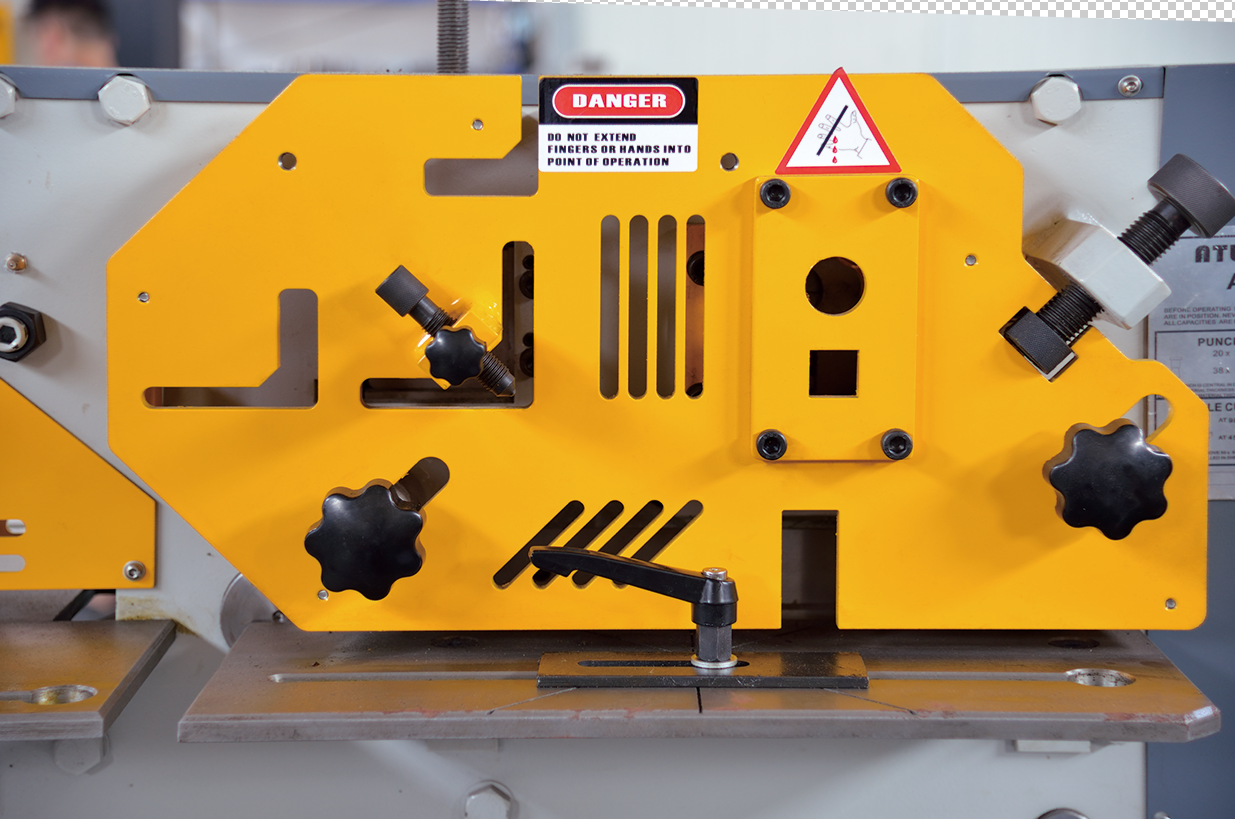

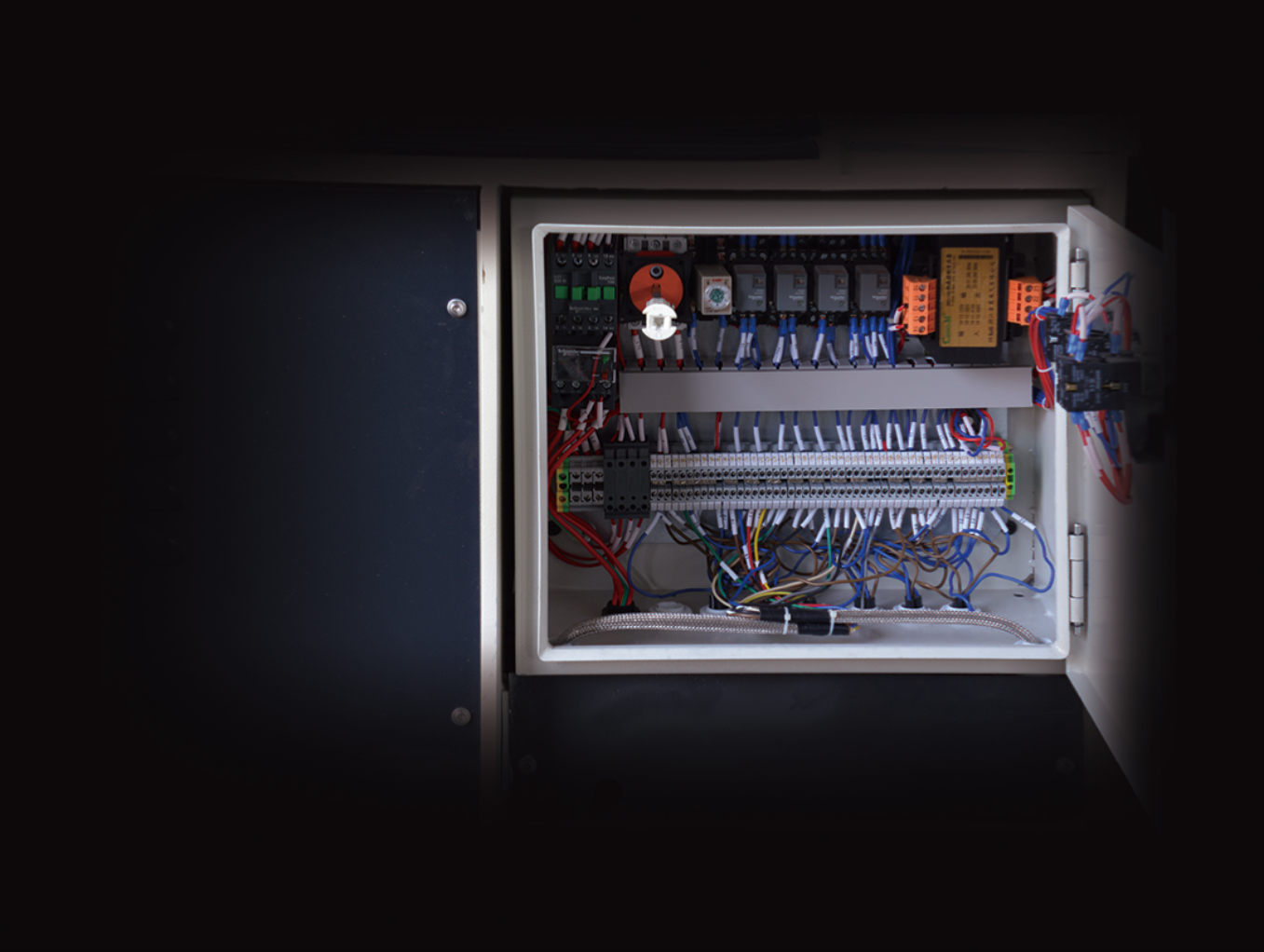

a. Main Electrical component: Schneider
b. Valve: Yuken

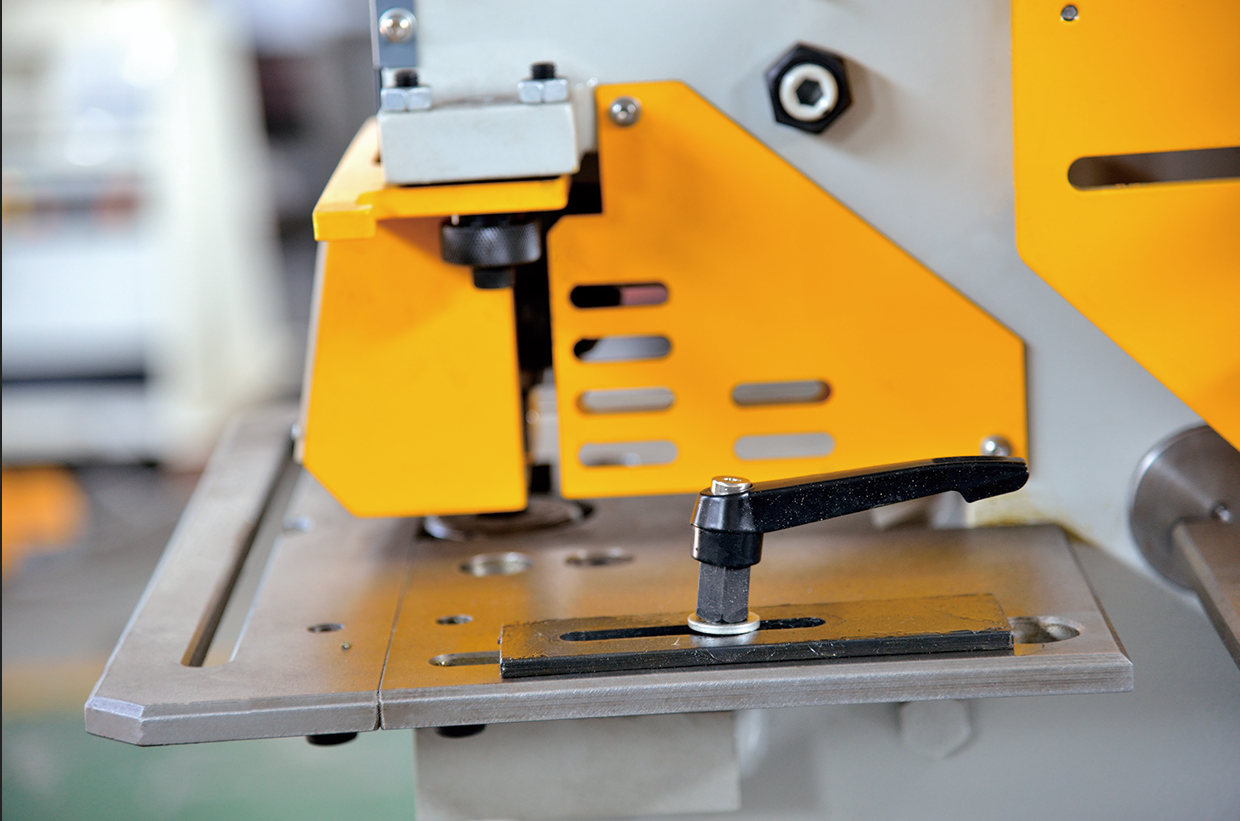

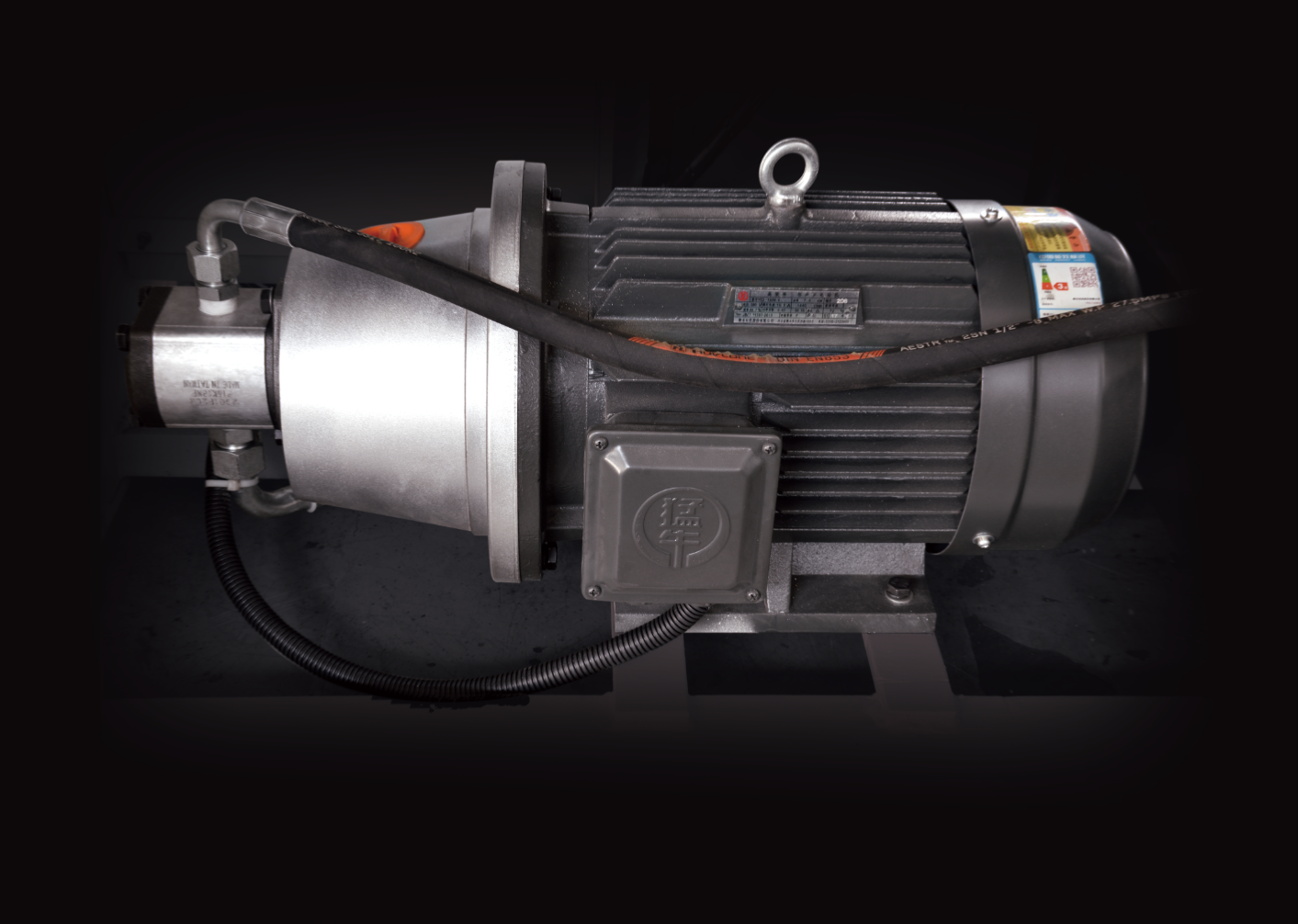

c. Pump: HY
d. Oil Seals: DZ
e. Connector: PAKER
2. Cost Effective
ASW SERIES Hydraulic Ironworker With Very good price/performance ratio
Various AIW SERIES Hydraulic Ironworker capacity from 45T to 175T to meet your requirement.
3. Stable Performance & Reliable Quality
ASW Series Hydraulic Ironworker use hydraulic transmission. Light weight, low noise, reliable performance.
4. Simple Operation
The operation of hydraulic ironworker is controlled by foot switch.
Technical Parameters:
|
ITEM |
UNIT |
VALUE |
|
|
Punching |
Max. Capacity |
mm |
20x15 |
|
Dia.x Thi. |
mm |
38x8 |
|
|
Stroke Length |
mm |
32 |
|
|
Standard Throat Depth |
mm |
23 |
|
|
Deep Throat Model |
mm |
175 |
|
|
Deep throat model |
mm |
- |
|
|
Largest Hole(Optional) |
mm |
57 |
|
|
Max. Height |
mm |
900 |
|
|
Shearing |
Flat bar- Max. Thickness |
mm |
200x13 |
|
Flat bar- Max. Width |
mm |
350x6 |
|
|
Angle Flange Trim-Max. 45° |
mm |
80x10 |
|
|
Working Height |
mm |
900 |
|
|
Angle Shearing |
90° Shearing |
mm |
80x8 |
|
45° Mitre (true int./ext.) |
mm |
50x6 |
|
|
Working Height |
mm |
1210 |
|
|
Profile Shearing |
Round/Square |
mm |
30/25 |
|
Channel/Beam* |
mm |
76x38 |
|
|
Tee* |
mm |
38x6 |
|
|
Notching** |
Material Thickness* |
mm |
8 |
|
Width - Rectangle* |
mm |
35 |
|
|
Depth - Rectangle* |
mm |
65 |
|
|
Depth- Vee* |
mm |
55 |
|
|
Angle Flange - Max. profile* |
mm |
- |
|
|
Working Height* |
mm |
900 |
|
|
Cornor Notching** |
Maximum Capacity |
mm |
- |
|
Tube Notch** |
Maximum outside dia. |
mm |
40 |
|
Bending** |
Plate |
mm |
|
|
Max. Capacity |
mm |
80x10 |
|
|
Punching at notch Station |
Throat Depth |
mm |
- |
|
Maximum Cpacity |
mm |
- |
|
|
Technical Data |
Motor Power |
KW |
3 |
|
Net Weight- st. Throat |
KG |
550 |
|
|
LxWxH |
mm |
106x55x148 |
|
* means not with standard machine. It is additional tool made by order.
